Mars will pass less than a degree north of Jupiter on August 14.
Conjunctions of Planets 4 and 5 (in order of their distance outward from the Sun) happen at intervals of about 2.24 years. The reason is that Mars, after passing Jupiter, goes around the Sun in 1.89 years (its sidereal period) and then takes some more time to overtake Jupiter, which, in its slower orbit, has moved on by about 74°. The intervals between the heliocentric conjunctions (as seen from the Sun) are regular, but the moving viewpoint of Earth makes them less so.
Our page about the Mars cycle displays the patterns of Mars’s roughly alternating years.

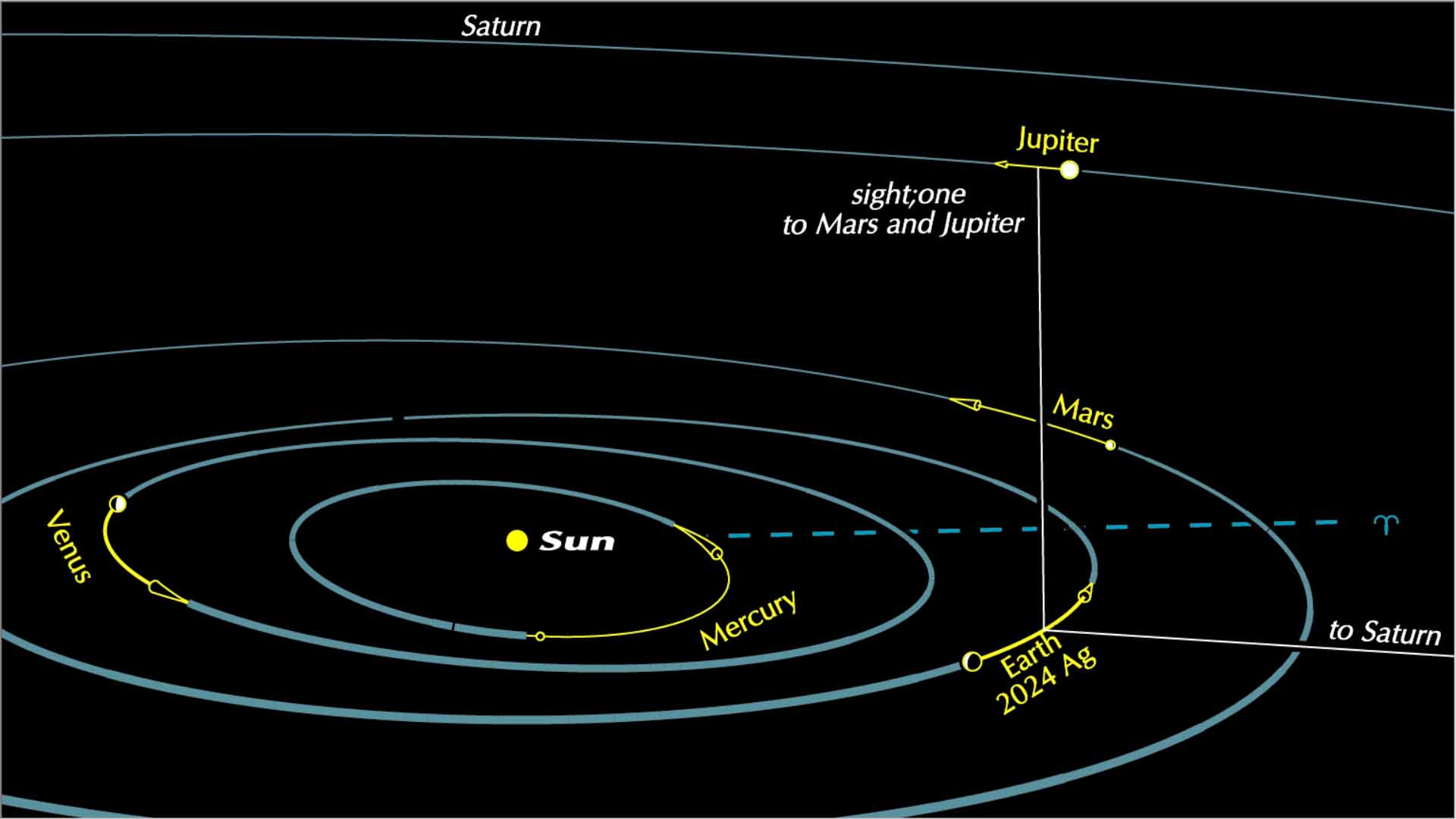

Here is how the present situation looks from out in space.
The viewpoint is 15° north of the ecliptic plane. Shown are the paths of the planets in August, and sightlines from Earth on Aug. 14. The Sun is exaggerated 4 times in size, the four inner planets 300 times, the giant outer planets (mostly out of the picture) 50 times. The dashed line is toward the vernal equinox direction, the zero point for mapping positions in the sky.
Mars and Jupiter are 66° out on the west (“right”) or morning side of the Sun. So they do not come into view until after midnight.
The angular separation between the planets will be 0.31°. Their distances from us are 1.44 and 5.38 AU (astronomical units, Sun-Earth distances); their magnitudes 0.8 and -2.2; their apparent widths about 6 and 36 seconds. These numbers mean that Jupiter is nearly 8 times farther away, yet appears about 6 times as wide and 16 times as bright.
It is always amazing to see, in an eyepiece, the cherry in front of the pumpkin and realize that the pumpkin is so much farther away.
__________
This weblog maintains its right to be about astronomy or anything under the sun.
ILLUSTRATIONS in these posts are made with precision but have to be inserted in another format. You may be able to enlarge them on your monitor.
One way: right-click, and choose ”View image” or ”Open image in new tab”, then enlarge. Or choose ”Copy image”, then put it on your desktop, then open it. On an iPad or phone, use the finger gesture that enlarges (spreading with two fingers, or tapping and dragging with three fingers). Other methods have been suggested, such as dragging the image to the desktop and opening it in other ways.
Sometimes I make improvements or corrections to a post after publishing it. If you click on the title, rather than on ‘Read more’, I think you are sure to see the latest version. Or, if you click ‘Refresh’ or press function key 5, you’ll see the latest version.
Very beauteous, especially since flanked by Aldebaran and Nath
After a few overcast nights, before dawn this morning there were lots of breaks in the clouds. Mars and Jupiter were in good view, dramatically close to one another, and Mars looked very red in contrast with brighter Jupiter. I hope to get another look when they’re even closer together tomorrow morning.
Saturn was visible too, and I found Uranus and Neptune with binoculars.
